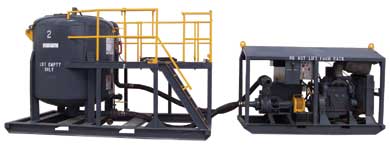

TANK
INFORMATION
2 - 4" Fill Lines
1 - 4" Suction Line
Tank Dimensions: 14'L X 7'W
X 9.7"H
Stairway with Hand Rails
Large Work Area and Pallet Landing
w/ Rails
Removable Handrails so Pallet
can be brought in from two sides
14" Auger with Paddles
for Fluid Agitation
4 - Shear Breaks located on
Tank Walls
Suction Valve Operable From
Both Work area and Bottom of
the Tank
Approx. Weight of Tank: 6,600
lbs
PUMP AND ENGINE INFORMATION
353 Detriot Diesel w/PTO and
Hydraulic Power Pack
Electric Start
Drip Pan
Emergency Shut Down
5" x 6" Centrifugal
Pump
Muffler Wrap
|
