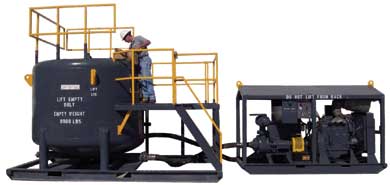

| 50
Barrel
Dual Action Mixing Package:
|
PUMP/POWERPACK
5" X 6" Centrifugal
Pump
Pump Dimensions: 10'L X 4'W
X 6'9"H
371 Detroit Diesel Engine w/
PTO
Capable of Operating Two Hydraulic
Agitators Simultaneously
Approx. Weight: 6,100 lbs.
TANK
INFORMATION
2 - 4" Fill Lines
2 - 4" Suction Line
Tank Dimensions: 14'L X 8'W
X 9"H
Stairway with Hand Rails
Fold Down Handrails on Top
of Tank
Large Work Area and Pallet
Landing w/ Rails
Removable Handrails so Pallet
can be brought in from two
sides.
20" Auger with Paddles
for Fluid Agitation
4 - Shear Breaks located on
Tank Walls
Suction Valve Operable From
Both Work area and Bottom
of the Tank
Approx. Weight of Tank: 8,000
lbs.
|
|
